- Two shapes of spray, choose appropriate products according to requirement
1. capsule shape (F)
2. circular shape (R)
- Special air cap design, increases smooth air-flow, and pattern sharp stability, less paint rebounds, prevention of nozzle clogging.
- Applications: touch ups, toys, car painting repairing, craft-products, spot repair.
| MODEL | TYPE OF
FEED | NOZZLE
ORIFICE
Ø mm (in) | AIR
CAP | ATOMIZING
AIR
PRESSURE
MPA (BAR) | FLUID
OUTPUT
ml/min | AIR
CONSUMPTION
l/min (cfm) | PATTERN
WIDTH
mm(in) | WEIGHT
g(lbs) |
| XF-50-G04 | GRAVITY | 0.4(0.016) | 04F | 0.24(2.5/36) | 20 | 85(3.0) | 50(2.0) | 210(0.46) |
| XF-50-G06 | GRAVITY | 0.6(0.024) | 06F | 0.24(2.5/36) | 30 | 85(3.0) | 70(2.8) | 210(0.46) |
| XF-50-G10 | GRAVITY | 1.0(0.039) | 10F | 0.24(2.5/36) | 70 | 85(3.0)
| 110(4.3) | 210(0.46) |
AIR SPRAY GUN INDUSTRY APPLICATION
SPRAY DISTANCE: 100~150mm
PAINT VISCOSITY: 16sec/Ford#4
FLUID CONNECTOR: 1/4”PF
AIR CONNECTOR: 1/4”PF

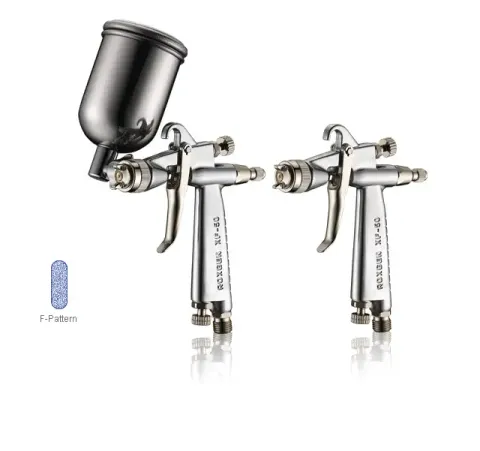

ROXGEN mini spray gun is used for refinsihing small area. The specially designed air cap increases the air flow, creating soft, and spot free round or fan pattern. It can be applied to small area spraying, car repair, aircraft repair, decoration, toys, leather, handicrafts, metal products ... and so on.
Two shapes of spray, choose appropriate products according to requirement: 1. capsule shape (F) 2. circular shape (R). Special air cap design, increases smooth air-flow, and pattern sharp stability, less paint rebounds, prevention of nozzle clogging.
